1. Understanding the Basics

Alright, let's dive in! Imagine you're trying to drive a car. You want to reach a certain speed (your "setpoint"). A control system helps you get there smoothly. Now, think of PD and PID controllers as different types of cruise control. They use feedback to adjust your "gas pedal" (the control output) to maintain that desired speed.

PID controllers (Proportional-Integral-Derivative) are the workhorses of control systems. They consider three aspects: the present error (Proportional), the accumulated past error (Integral), and the predicted future error (Derivative). Think of it like this: Proportional says, "I'm far away, floor it!". Integral says, "I've been consistently slow, give it a little more gas!". Derivative says, "I'm approaching too quickly, ease off!".

PD controllers, on the other hand, are like PID's simpler sibling. They only consider the Proportional and Derivative terms. No Integral action here! This makes them less complex to tune, but also less effective in some situations. It's like having cruise control that reacts instantly to speed changes but doesn't remember if you've been consistently driving below the set speed.

So, when might you choose the simpler PD over the more comprehensive PID? Thats what we're here to explore! It's all about understanding the trade-offs and matching the controller to the specific job at hand. Think of it like choosing the right tool for the right task a sledgehammer isnt always the best choice, even if it can get the job done.

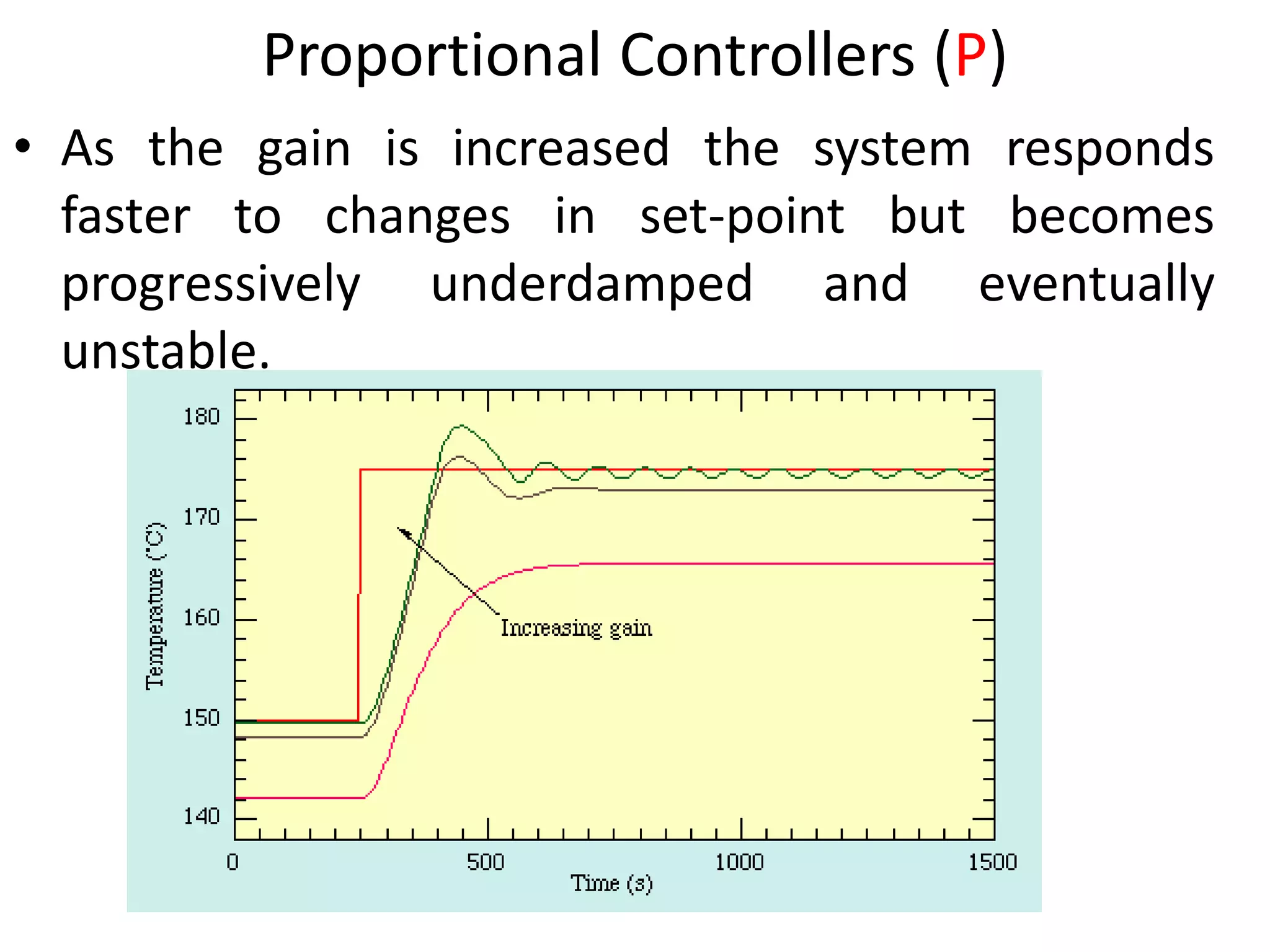

PID Controller, P, I And D Control Comparison PI, PD Controller

Why Consider PD Control? Simplicity and Speed

2. The Advantages of PD Control

Okay, let's be honest, sometimes complexity is overrated. One of the biggest advantages of PD control is its simplicity. Fewer terms mean fewer parameters to tune. Tuning a PID controller can sometimes feel like wrestling an octopus — a lot of arms (parameters) to keep track of! With PD, it's a more straightforward process, saving you time and potentially headaches.

Another key benefit is faster response time. The Integral term in PID, while useful for eliminating steady-state errors, can sometimes slow down the initial response. Think of it as PID having to remember the past, which takes time. PD, focused on the present and immediate future, can react more quickly to changes in the system. This is crucial in applications where speed is paramount.

Imagine trying to balance a Segway. You need a controller that can react instantly to changes in your balance. A slow-responding PID might cause you to wobble around before finally correcting. A PD controller, with its fast response, can keep you upright with minimal delay.

Furthermore, PD controllers are generally more robust to noise in the system. The Integral term can amplify noise, leading to oscillations and instability. By eliminating the Integral term, PD controllers are less susceptible to this issue, making them a more reliable choice in noisy environments.

PID Controller, P, I And D Control Comparison PI, PD Controller

The Downside

3. Limitations of PD Control

Now, before you go throwing out all your PID controllers, let's talk about the downsides of PD. The biggest limitation is the lack of Integral action. Remember how the Integral term eliminates steady-state errors? Well, without it, PD controllers often struggle to reach the exact setpoint, especially in the presence of disturbances or constant loads. Imagine trying to maintain a constant temperature in your house on a cold day. A PD controller might get close, but it might always be a degree or two off.

This steady-state error can be a major problem in applications where precision is critical. Think of a machine that needs to cut metal with extreme accuracy. A PD controller might leave a small but unacceptable error in the cut.

Another drawback is that PD controllers can be more sensitive to changes in the system's gain. If the system's gain changes, the controller's performance can degrade significantly. This requires careful tuning and may necessitate re-tuning if the system changes.

In essence, PD control is a balancing act. You gain simplicity and speed, but you sacrifice steady-state accuracy. Its crucial to consider these trade-offs when choosing a controller for your application.

PID Controller Explained RealPars

Use Cases

4. Real-World Applications

So, where does PD really shine? Primarily, it's in applications where fast response is crucial and steady-state error is tolerable. Think of robotics, especially applications involving fast movements and precise positioning of robotic arms. In these scenarios, a PD controller can provide the necessary speed and agility.

Another excellent use case is vibration damping. PD controllers can effectively dampen vibrations in mechanical systems, preventing oscillations and improving stability. Imagine a suspension system in a car. A PD controller can help to minimize bouncing and provide a smoother ride.

Furthermore, PD control is often used as an inner loop in cascaded control systems. In these systems, a PD controller is used to control a fast, inner loop, while a PID controller is used to control a slower, outer loop. This combination allows for both fast response and accurate setpoint tracking.

Consider a drone trying to maintain its altitude. A PD controller might manage the rapid adjustments needed to counteract gusts of wind, while a PID controller could handle the long-term adjustments to maintain the desired altitude. This division of labor allows for optimal performance.

PID Controller, P, I And D Control Comparison PI, PD Controller

Making the Choice

5. Factors to Consider

Ultimately, the decision of whether to use PD or PID control depends on the specific requirements of your application. Ask yourself these questions: How important is speed? How important is accuracy? How much noise is present in the system? How much time do I want to spend tuning the controller?

If speed is paramount and steady-state error is acceptable, PD might be the better choice. If accuracy is critical and you're willing to spend the time tuning a PID controller, then PID is likely the way to go. If you're dealing with a noisy system, PD might be a more robust option.

It's also worth considering the complexity of the system. If you have a simple system with well-defined dynamics, PD might be sufficient. If you have a complex system with nonlinearities and time delays, PID might be necessary to achieve satisfactory performance.

Finally, don't be afraid to experiment! Simulate your system with both PD and PID controllers and see which one performs better. The best way to learn is by doing. And who knows, you might just discover that the simpler PD controller is all you need.
