Decoding Wire Sizes

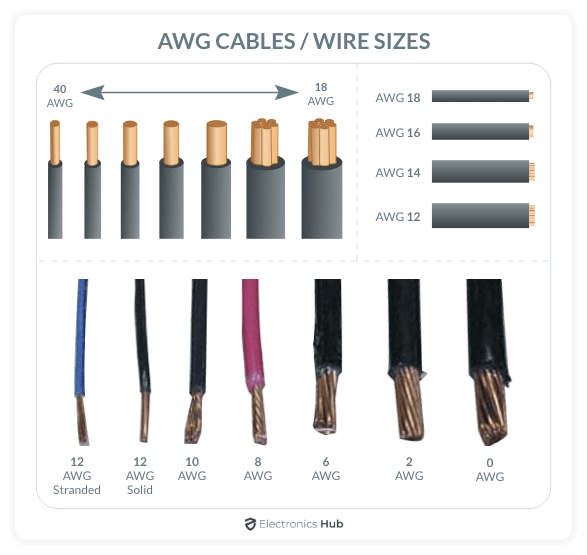

1. Understanding AWG Wire Sizes

Ever stared at a spool of wire and wondered what all those numbers and letters actually mean? You're not alone! The American Wire Gauge (AWG) system can seem like a secret code at first glance, but it's actually a pretty straightforward way to classify wire sizes. The key thing to remember? The smaller the AWG number, the larger the wire. Think of it like golf: a lower score is better!

So, when we ask "Which is bigger, 1 AWG or 2 AWG?", the answer is... 1 AWG! Yes, it sounds counterintuitive, but that's how the system works. A 1 AWG wire has a larger diameter and a greater cross-sectional area than a 2 AWG wire. This larger size means it can carry more electrical current without overheating. Imagine trying to pour water through a tiny straw versus a larger pipe — the larger pipe can handle more water, right? Same principle applies to wires and electricity.

But why is it backwards? Well, the AWG system originated long ago, with the number representing the number of drawing operations required to reduce a metal wire to a specific size. The more times you draw it, the thinner it gets — hence the inverse relationship. It's a historical quirk that we're stuck with, but once you grasp the concept, it's not too tricky.

Think of it this way: if you're building a super-powered robot that needs a lot of juice, you're gonna want a bigger wire (lower AWG number) to handle the current. If you're just wiring up a small LED light, a smaller wire (higher AWG number) will probably do the trick.

Dây Cáp điện AWM UL Bảng Chuyển đổi đơn Vị AWG Sang MM2

Why Wire Size Matters

2. The Importance of Current Carrying Capacity

Okay, so we know 1 AWG is bigger than 2 AWG. But why should we care? Well, the size of a wire directly impacts its current carrying capacity, also known as ampacity. Ampacity refers to the maximum amount of electrical current a wire can safely handle without overheating and potentially causing a fire hazard. Nobody wants that!

Using a wire that's too small for the current it needs to carry is like trying to force too much water through that tiny straw we talked about earlier. The wire will heat up, the insulation can melt, and you could end up with a very dangerous situation. On the other hand, using a wire that's too big isn't necessarily dangerous, but it's definitely overkill and can be more expensive and difficult to work with. It's like using a fire hose to water your houseplants; effective, but a bit much.

To figure out the right wire size for your project, you need to consider the amount of current it will be carrying and the length of the wire run. Longer runs experience more voltage drop, so you might need to upsize the wire to compensate. There are plenty of online calculators and charts that can help you determine the appropriate AWG for your specific needs. Don't just guess — be safe and do your research!

Remember that using the wrong wire can lead to some serious consequences. It's not just about whether your device will work; it's about protecting your home and yourself from potential electrical hazards. So take the time to understand AWG ratings and choose the right wire for the job.

Beyond the Numbers

3. Choosing the Right Wire for Your Project

While the AWG rating is a crucial factor in determining wire size, it's not the only thing you need to consider. The type of wire insulation also plays a significant role. Different types of insulation have different temperature ratings, which affect the ampacity of the wire. For example, THHN insulation is more heat-resistant than standard PVC insulation, allowing for a higher ampacity rating.

Another factor to consider is the environment where the wire will be used. Will it be exposed to moisture, chemicals, or extreme temperatures? If so, you'll need to choose a wire with insulation that's specifically designed to withstand those conditions. For outdoor applications, look for wires that are rated for direct burial and are resistant to UV radiation. For marine applications, choose tinned copper wire to prevent corrosion from saltwater.

The material of the wire itself also matters. Copper is the most common choice for electrical wiring due to its excellent conductivity. However, aluminum wire is sometimes used in larger sizes because it's lighter and less expensive than copper. Aluminum wire has a lower conductivity than copper, so you'll need to use a larger gauge aluminum wire to carry the same amount of current as a copper wire.

So, before you grab just any wire off the shelf, take a moment to assess your project's specific needs. Consider the current requirements, the environment, and the type of insulation required. Choosing the right wire can make all the difference in the safety and reliability of your electrical system. It's a small investment that can save you a lot of headaches (and potential hazards) down the road.

The Crazy World Of Conductor Sizing Origins AWG System

Practical Applications

4. From Home Wiring to Car Audio

You might not think about AWG sizes every day, but they're actually pretty common in many areas of our lives. In residential wiring, AWG sizes are used for everything from lighting circuits to appliance circuits. For example, 14 AWG wire is commonly used for lighting circuits, while 12 AWG wire is often used for general-purpose outlets. Larger appliances like refrigerators and electric stoves typically require even larger wire sizes, such as 10 AWG or even 8 AWG.

In the automotive world, AWG sizes are used for wiring everything from headlights to sound systems. For car audio installations, larger AWG wires are often used to deliver power to amplifiers. This is because amplifiers can draw a significant amount of current, especially when playing loud music. Using the correct wire size is crucial for ensuring that your amplifier receives enough power and doesn't overheat.

Even in electronics projects, AWG sizes play a role. Smaller AWG wires are commonly used for connecting components on circuit boards and for building custom cables. Understanding AWG sizes can be helpful for DIY enthusiasts who want to build their own electronics projects or repair existing devices.

So, whether you're wiring a new house, installing a car audio system, or building an electronics project, understanding AWG sizes is essential for ensuring safety and performance. By knowing the difference between 1 AWG and 2 AWG, and understanding the factors that affect wire choice, you can make informed decisions and avoid potential problems. It may seem like a small detail, but it can make a big difference in the long run.

FAQ

5. Answering Your Burning Questions About AWG

Still a little confused about wire sizes? Don't worry, it's a common question. Here are a few frequently asked questions to help clear things up:

Q: Why is the AWG scale "backwards"?
A: Good question! The AWG scale reflects the number of drawing operations required to reduce a wire to its final size. More draws mean a thinner wire, hence the inverse relationship. It's a historical thing that's stuck around.

Q: What happens if I use a wire that's too small?
A: Using a wire that's too small for the current it needs to carry is dangerous. The wire will overheat, potentially melting the insulation and causing a fire. Always err on the side of caution and use a wire that's rated for the expected current draw.

Q: Is it okay to use a wire that's bigger than necessary?
A: Yes, it's generally safe to use a wire that's larger than necessary. However, it can be more expensive and difficult to work with, as larger wires are stiffer and take up more space. It's usually best to choose a wire that's appropriately sized for the application.
